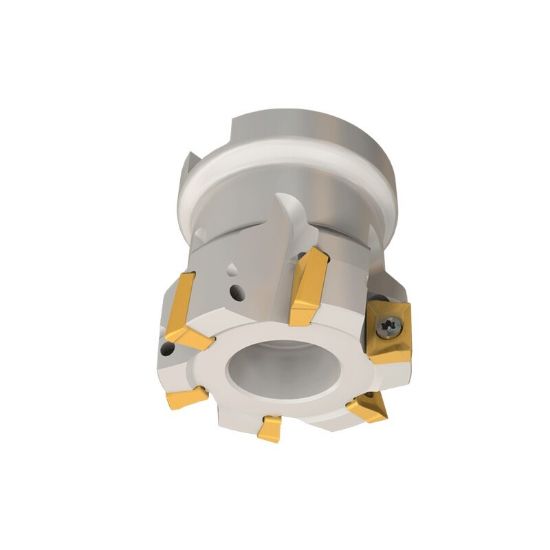

Picture of ISCAR HM90 F90AP D2.00-6-.75 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ISCAR HM90 F90AP D2.00-6-.75 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ANSI: HM90 F90AP D2.00-6-.75

ISO: HM90 F90AP D2.00-6-.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102078
Delivery date: 3-5 days
$619.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Depth Of Cut Max 0.3900
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Insert Size Ic 10
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AP
Fasteners & Connectors
Insert Screw 7002441
