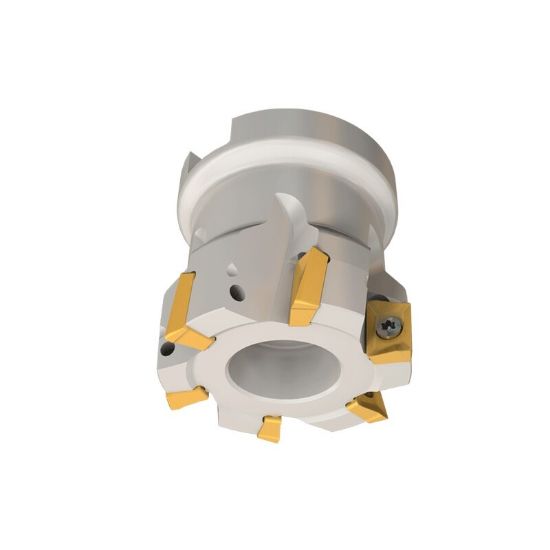

Picture of ISCAR HM90 F90AP D1.50-6-.75 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ISCAR HM90 F90AP D1.50-6-.75 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 6 Flute

ANSI: HM90 F90AP D1.50-6-.75

ISO: HM90 F90AP D1.50-6-.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102084
Delivery date: 3-5 days
$519.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.3900
Flutes/Inserts 6
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Insert Size Ic 10
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002441
