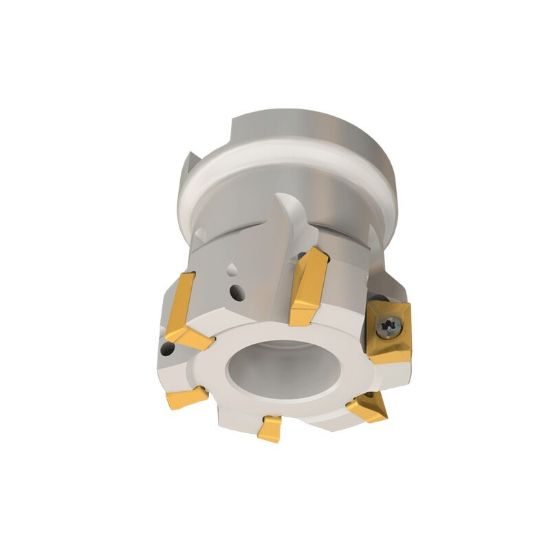

Picture of ISCAR HM90 F90AP D1.50-5-.75 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ISCAR HM90 F90AP D1.50-5-.75 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ANSI: HM90 F90AP D1.50-5-.75

ISO: HM90 F90AP D1.50-5-.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102077
Delivery date: 3-5 days
$482.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Insert Size Ic 10
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3900
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Fasteners & Connectors
Insert Screw 7002441
