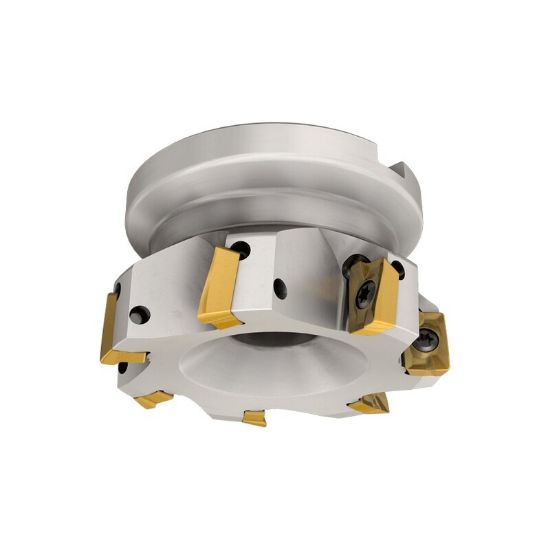

Picture of ISCAR HM90 F90A D8.00-9-2.50 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 9 Flute

ISCAR HM90 F90A D8.00-9-2.50 Milling Cutter 90.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 9 Flute

ANSI: HM90 F90A D8.00-9-2.50

ISO: HM90 F90A D8.00-9-2.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102114
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Package Size 1
Shipping State Texas
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.5600
Overall Len 2.5000 63.50MM
Cutter Dia 8.0000 203.20MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 9
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cut Dia Min 8.0000 203.20MM
Cut Dia Max 8.0000 203.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AD
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
