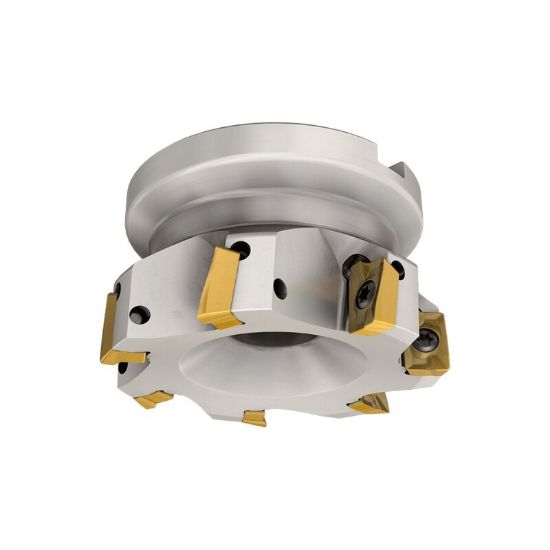

Picture of ISCAR HM90 F90A D6.00-8-2.00 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.380 OAL 8 Flute

ISCAR HM90 F90A D6.00-8-2.00 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.380 OAL 8 Flute

ANSI: HM90 F90A D6.00-8-2.00

ISO: HM90 F90A D6.00-8-2.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102113
Delivery date: 3-5 days
$1,353.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Insert Size Ic 15
Cutter Dia 6.0000 152.40MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 6.0000 152.40MM
Machine Side Connection Size 2.0000 50.80MM
Flutes/Inserts 8
Depth Of Cut Max 0.5600
Cut Dia Max 6.0000 152.40MM
Overall Len 2.3800 60.45MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000402
