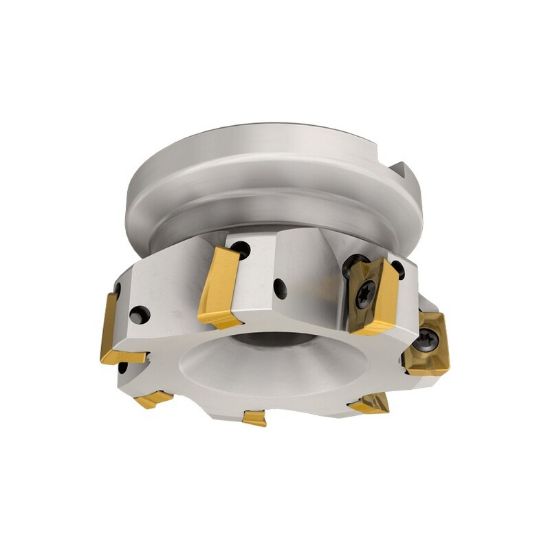

Picture of ISCAR HM90 F90A D4.00-6-1.50 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ISCAR HM90 F90A D4.00-6-1.50 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ANSI: HM90 F90A D4.00-6-1.50

ISO: HM90 F90A D4.00-6-1.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102111
Delivery date: 3-5 days
$911.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Flutes/Inserts 6
Depth Of Cut Max 0.5600
Cut Dia Min 4.0000 101.60MM
Cutter Dia 4.0000 101.60MM
Tool Material Steel
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Insert Style AD
Fasteners & Connectors
Insert Screw 7000402
