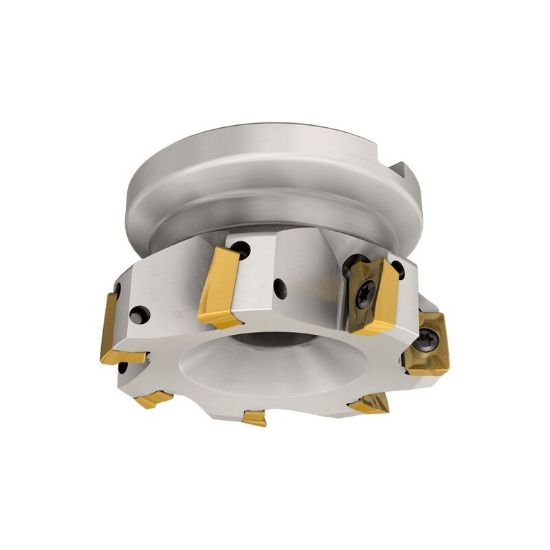

Picture of ISCAR HM90 F90A D3.00-7-1.00 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ISCAR HM90 F90A D3.00-7-1.00 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ANSI: HM90 F90A D3.00-7-1.00

ISO: HM90 F90A D3.00-7-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102120
Delivery date: 3-5 days
$813.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 15
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.5600
Cutter Dia 3.0000 76.20MM
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 7
Cutting & Machining Properties
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
