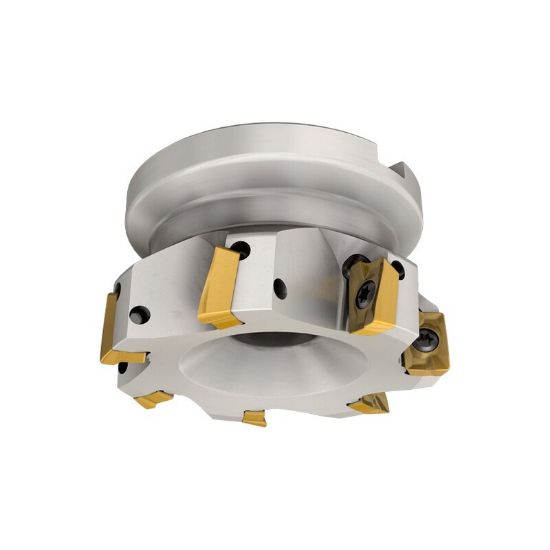

Picture of ISCAR HM90 F90A D2.50-6-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR HM90 F90A D2.50-6-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: HM90 F90A D2.50-6-1.00

ISO: HM90 F90A D2.50-6-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102119
Delivery date: 3-5 days
$643.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Flutes/Inserts 6
Insert Size Ic 15
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.5600
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000402
