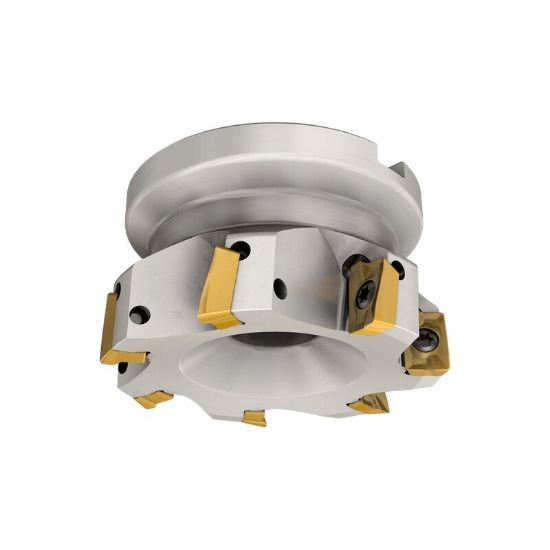

Picture of ISCAR HM90 F90A D2.50-4-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ISCAR HM90 F90A D2.50-4-1.00 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ANSI: HM90 F90A D2.50-4-1.00

ISO: HM90 F90A D2.50-4-1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102109
Delivery date: 3-5 days
$602.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.5600
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AD
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
