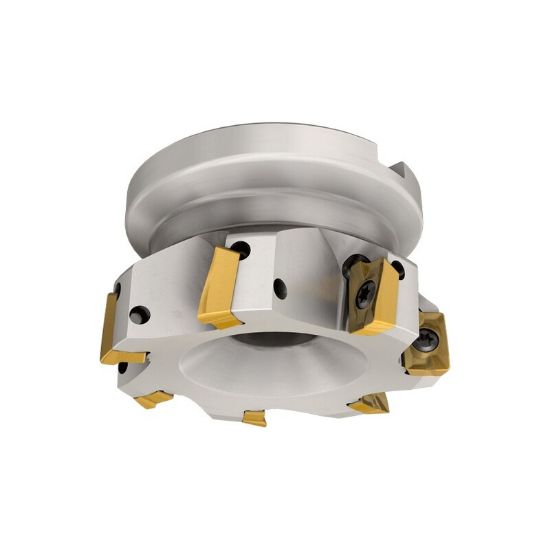

Picture of ISCAR HM90 F90A D2.00-3-.75 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ISCAR HM90 F90A D2.00-3-.75 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ANSI: HM90 F90A D2.00-3-.75

ISO: HM90 F90A D2.00-3-.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102108
Delivery date: 3-5 days
$482.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Pocket Milling, Slot Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.5700 39.88MM
Depth Of Cut Max 0.5600
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
