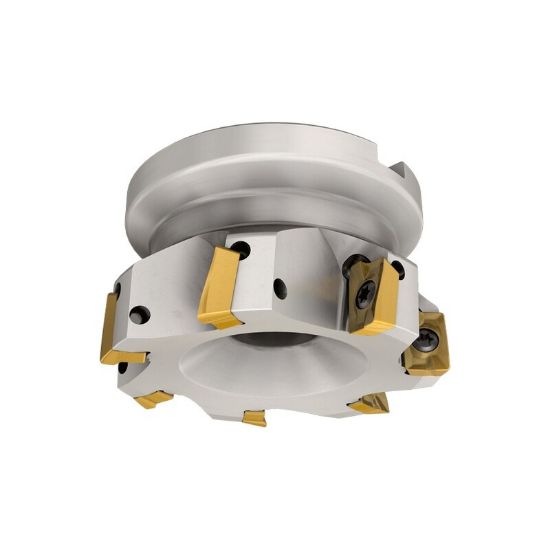

Picture of ISCAR HM90 F90A D1.50-3-.75 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ISCAR HM90 F90A D1.50-3-.75 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.570 OAL 3 Flute

ANSI: HM90 F90A D1.50-3-.75

ISO: HM90 F90A D1.50-3-.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102107
Delivery date: 3-5 days
$453.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Flutes/Inserts 3
Insert Size Ic 15
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Depth Of Cut Max 0.5600
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Coolant Thru No
Insert Style AD
Fasteners & Connectors
Insert Screw 7000402
