  • ISCAR HM90 F90A D12.00-12-2.50 Milling Cutter 90.0° 12.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

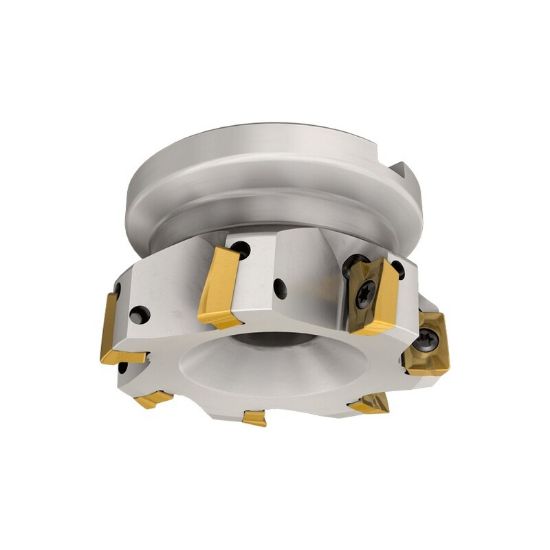

Picture of ISCAR HM90 F90A D12.00-12-2.50 Milling Cutter 90.0° 12.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

ISCAR HM90 F90A D12.00-12-2.50 Milling Cutter 90.0° 12.00 Diameter Face Mill 2.500 2.500 OAL 12 Flute

ANSI: HM90 F90A D12.00-12-2.50

ISO: HM90 F90A D12.00-12-2.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102116
Delivery date: 3-5 days
$2,083.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Cut Dia Max 12.0000 304.80MM
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Depth Of Cut Max 0.5600
Overall Len 2.5000 63.50MM
Cutter Dia 12.0000 304.80MM
Flutes/Inserts 12
Insert Size Ic 15
Cut Dia Min 12.0000 304.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AD
Fasteners & Connectors
Insert Screw 7000402
