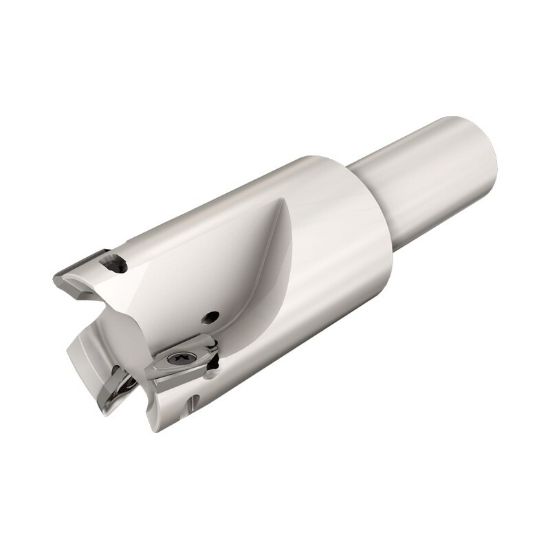

Picture of ISCAR HM90 EAL-D200-C125L6-16 Milling Cutter 90.0° 2.000 Diameter Round 1.250 6.000 OAL 3 Flute

ISCAR HM90 EAL-D200-C125L6-16 Milling Cutter 90.0° 2.000 Diameter Round 1.250 6.000 OAL 3 Flute

ANSI: HM90 EAL-D200-C125L6-16

ISO: HM90 EAL-D200-C125L6-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102306
Delivery date: 3-5 days
$1,056.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Cut Rating Aluminum, Graphite
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 3
Insert Size Ic 16
Depth Of Cut Max 0.6220
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Max Ramp Angle 11.20°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002791
