  • ISCAR HM90 EAL-D1.25-L3.5-CF416 Milling Cutter 90.0° 1.250 Diameter Clickfit 1.574 5.500 OAL 2 Flute

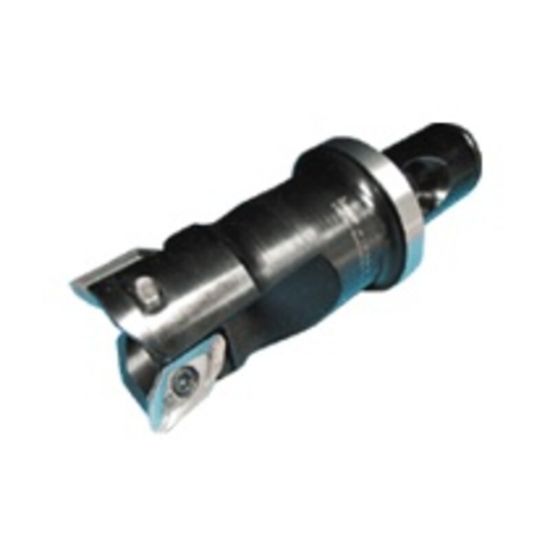

Picture of ISCAR HM90 EAL-D1.25-L3.5-CF416 Milling Cutter 90.0° 1.250 Diameter Clickfit 1.574 5.500 OAL 2 Flute

ISCAR HM90 EAL-D1.25-L3.5-CF416 Milling Cutter 90.0° 1.250 Diameter Clickfit 1.574 5.500 OAL 2 Flute

ANSI: HM90 EAL-D1.25-L3.5-CF416

ISO: HM90 EAL-D1.25-L3.5-CF416

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102760
Delivery date: 3-5 days
$650.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Cut Rating Aluminum, Graphite
Insert Size Ic 16
Depth Of Cut Max 0.6220
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type CLICK FIT
Machine Side Connection Size 1.5748 40.00MM
Overall Len 5.5000 139.70MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 22.40°
Insert Style AP
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002281
