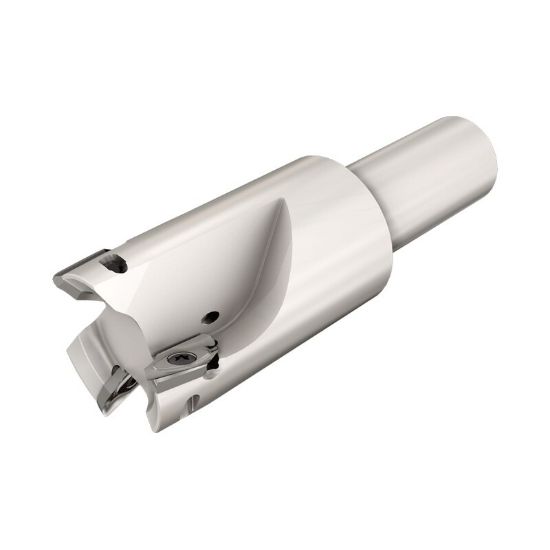

Picture of ISCAR HM90 EAL-D125-C125L9-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 9.000 OAL 2 Flute

ISCAR HM90 EAL-D125-C125L9-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 9.000 OAL 2 Flute

ANSI: HM90 EAL-D125-C125L9-16

ISO: HM90 EAL-D125-C125L9-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102371
Delivery date: 3-5 days
$624.96

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16
Depth Of Cut Max 0.6220
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cut Dia Max 1.2500 31.75MM - 1-1/4
Overall Len 9.0000 228.60MM
Flutes/Inserts 2
Cutting & Machining Properties
Cool Sply Type Through Hole
Max Ramp Angle 22.40°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Fasteners & Connectors
Insert Screw 7002791
