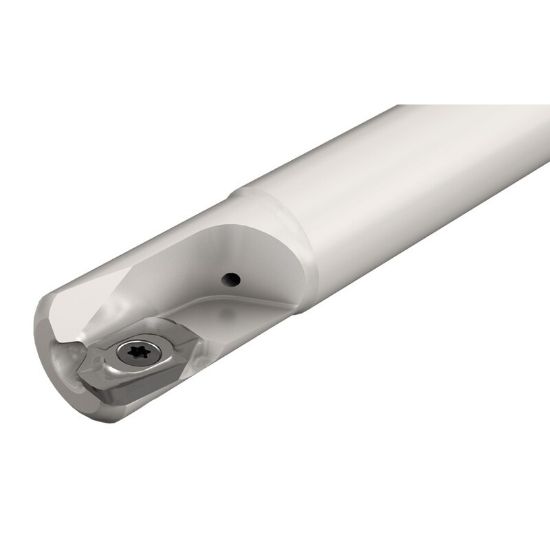

Picture of ISCAR HM90 EAL-D125-C125L8-16BR Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 2 Flute

ISCAR HM90 EAL-D125-C125L8-16BR Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 2 Flute

ANSI: HM90 EAL-D125-C125L8-16BR

ISO: HM90 EAL-D125-C125L8-16BR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102312
Delivery date: 3-5 days
$646.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.6300
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 8.0000 203.20MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 22.50°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002377
