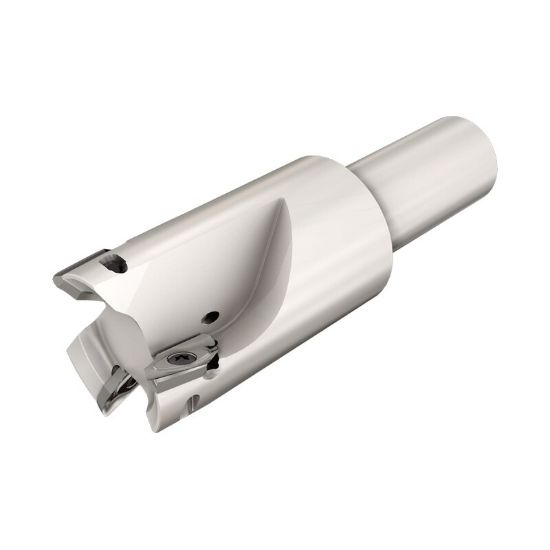

Picture of ISCAR HM90 EAL-D125-C125L8-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 2 Flute

ISCAR HM90 EAL-D125-C125L8-16 Milling Cutter 90.0° 1.250 Diameter Round 1.250 8.000 OAL 2 Flute

ANSI: HM90 EAL-D125-C125L8-16

ISO: HM90 EAL-D125-C125L8-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102765
Delivery date: 3-5 days
$624.96

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cut Rating Aluminum, Graphite
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Overall Len 8.0000 203.20MM
Depth Of Cut Max 0.6220
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Max Ramp Angle 22.40°
Fasteners & Connectors
Insert Screw 7002791
