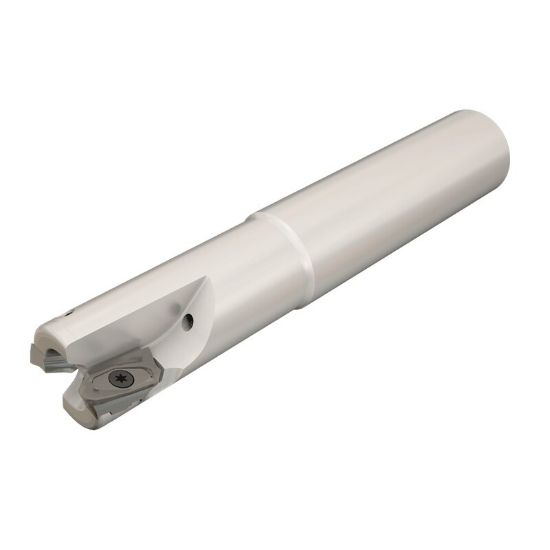

Picture of ISCAR HM90 EAL-D125-C125L5.5-15 Milling Cutter 90.0° 1.250 Diameter Round 1.250 5.500 OAL 3 Flute

ISCAR HM90 EAL-D125-C125L5.5-15 Milling Cutter 90.0° 1.250 Diameter Round 1.250 5.500 OAL 3 Flute

ANSI: HM90 EAL-D125-C125L5.5-15

ISO: HM90 EAL-D125-C125L5.5-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103004
Delivery date: 3-5 days
$665.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Insert Type Positive
Package Size 1
Shipping State Texas
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Size Ic 15
Cut Rating Aluminum, Gray Iron, High Temp
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.5310
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Material Steel
Overall Len 5.5000 139.70MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Max Ramp Angle 16.00°
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002281
