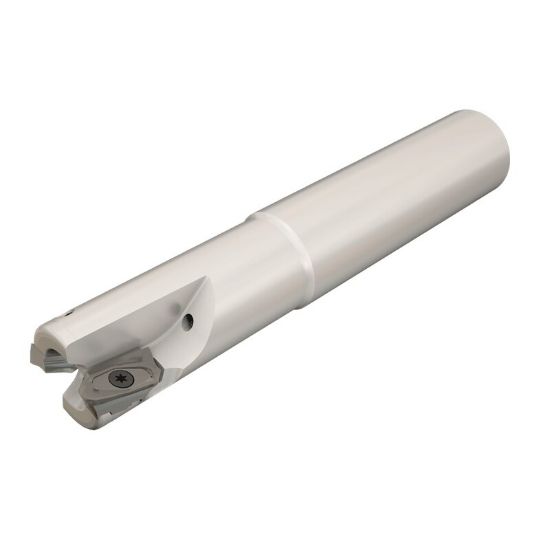

Picture of ISCAR HM90 EAL-D100-C100L5.5-15 Milling Cutter 90.0° 1.000 Diameter Round 1.000 5.500 OAL 2 Flute

ISCAR HM90 EAL-D100-C100L5.5-15 Milling Cutter 90.0° 1.000 Diameter Round 1.000 5.500 OAL 2 Flute

ANSI: HM90 EAL-D100-C100L5.5-15

ISO: HM90 EAL-D100-C100L5.5-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103002
Delivery date: 3-5 days
$533.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Insert Size Ic 15
Flutes/Inserts 2
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.5310
Overall Len 5.5000 139.70MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Rating Aluminum, Gray Iron, High Temp
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 25.00°
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002281
