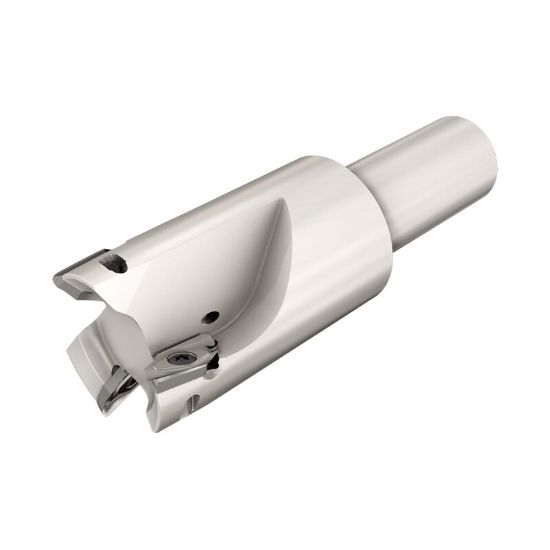

ISCAR HM90 EAL-D100-C100L5-16 Milling Cutter 90.0° 1.000 Diameter Round 1.000 5.000 OAL 1 Flute

ANSI: HM90 EAL-D100-C100L5-16

ISO: HM90 EAL-D100-C100L5-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181016
Delivery date: 3-5 days
$462.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 16
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.6100
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AL
Max Ramp Angle 25.90°
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006264
