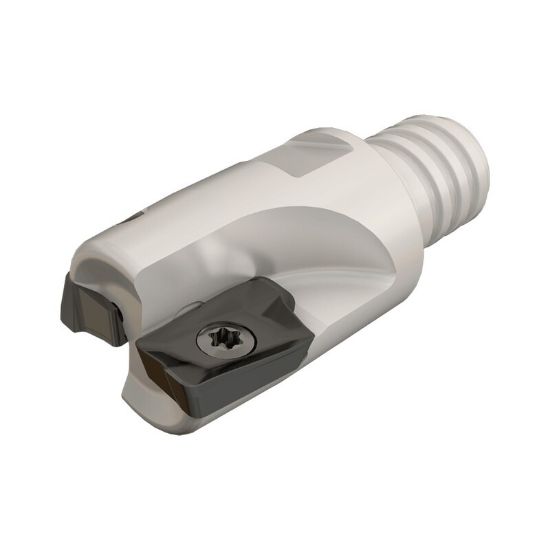

Picture of ISCAR HM90 E90A-D.75-3-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.510 OAL 3 Flute

ISCAR HM90 E90A-D.75-3-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.510 OAL 3 Flute

ANSI: HM90 E90A-D.75-3-MMT12

ISO: HM90 E90A-D.75-3-MMT12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104246
Delivery date: 3-5 days
$383.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size T12
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cut Dia Max 0.7500 19.05MM - 3/4
Cut Dia Min 0.7500 19.05MM - 3/4
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Overall Len 1.5100 38.35MM
Tool Material Steel
Depth Of Cut Max 0.3940
Cutting & Machining Properties
Max Ramp Angle 2.40°
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002527
