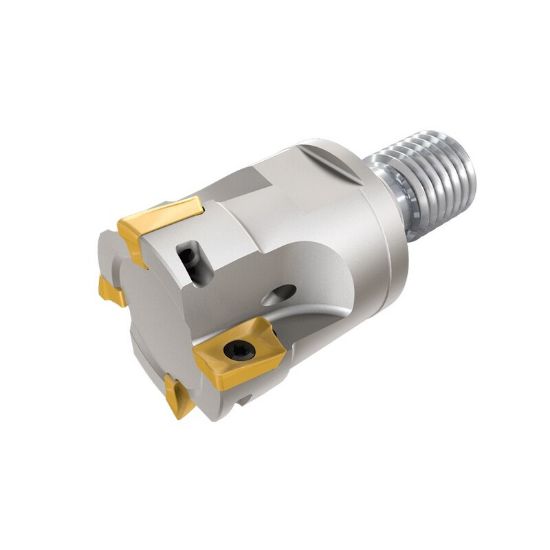

Picture of ISCAR HM90 E90A-D.75-3-M10 Milling Cutter 90.0° 0.750 Diameter Screw On M10 1.970 OAL 3 Flute

ISCAR HM90 E90A-D.75-3-M10 Milling Cutter 90.0° 0.750 Diameter Screw On M10 1.970 OAL 3 Flute

ANSI: HM90 E90A-D.75-3-M10

ISO: HM90 E90A-D.75-3-M10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110731
Delivery date: 3-5 days
$364.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3940
Machine Side Connection Type Screw On
Cut Dia Max 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Cut Dia Min 0.7500 19.05MM - 3/4
Machine Side Connection Size M10
Overall Len 1.9700 50.04MM
Insert Size Ic 10
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 7.50°
Fasteners & Connectors
Insert Screw 7000402
