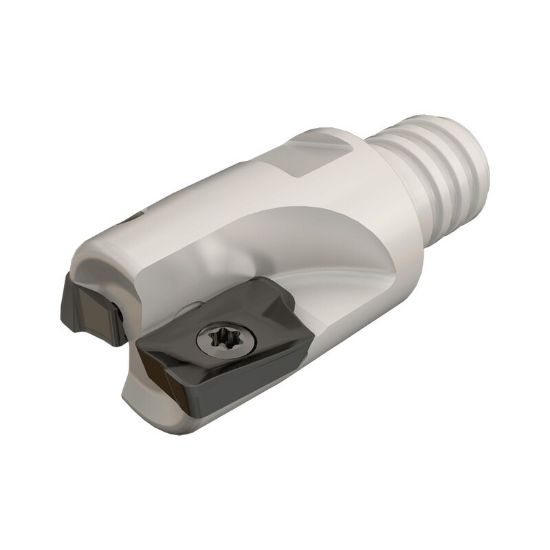

Picture of ISCAR HM90 E90A-D.75-2-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.510 OAL 2 Flute

ISCAR HM90 E90A-D.75-2-MMT12 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.510 OAL 2 Flute

ANSI: HM90 E90A-D.75-2-MMT12

ISO: HM90 E90A-D.75-2-MMT12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104245
Delivery date: 3-5 days
$360.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Side Milling, Pocket Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Machine Side Connection Size T12
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Overall Len 1.5100 38.35MM
Tool Material Steel
Depth Of Cut Max 0.3940
Cut Dia Max 0.7500 19.05MM - 3/4
Machine Side Connection Type Screw On
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Max Ramp Angle 2.40°
Insert Style AP
Fasteners & Connectors
Insert Screw 7002441
