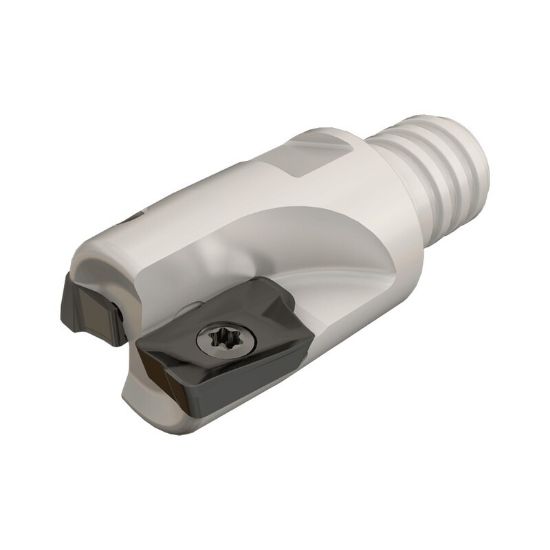

Picture of ISCAR HM90 E90A-D.62-2-MMT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.330 OAL 2 Flute

ISCAR HM90 E90A-D.62-2-MMT10 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.330 OAL 2 Flute

ANSI: HM90 E90A-D.62-2-MMT10

ISO: HM90 E90A-D.62-2-MMT10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104242
Delivery date: 3-5 days
$312.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Depth Of Cut Max 0.3940
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Machine Side Connection Size T10
Flutes/Inserts 2
Insert Size Ic 10
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 1.3300 33.78MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AP
Max Ramp Angle 3.20°
Fasteners & Connectors
Insert Screw 7002441
