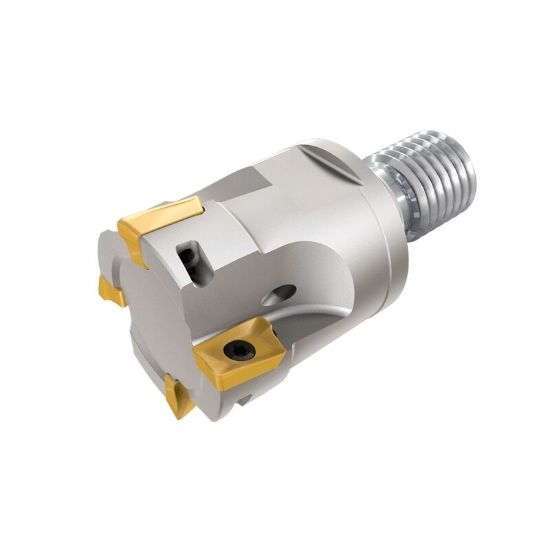

Picture of ISCAR HM90 E90A-D1.25-4-M16 Milling Cutter 90.0° 1.250 Diameter Screw On M16 2.360 OAL 4 Flute

ISCAR HM90 E90A-D1.25-4-M16 Milling Cutter 90.0° 1.250 Diameter Screw On M16 2.360 OAL 4 Flute

ANSI: HM90 E90A-D1.25-4-M16

ISO: HM90 E90A-D1.25-4-M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181269
Delivery date: 3-5 days
$447.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Pocket Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4720
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Overall Len 2.3600 59.94MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Insert Size Ic 10
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Style AP
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006979
