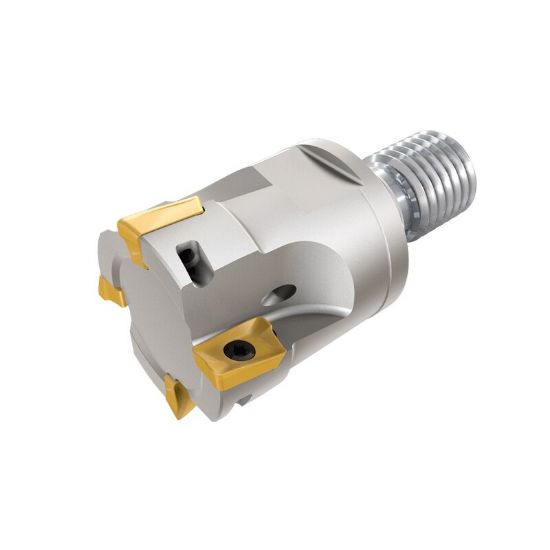

Picture of ISCAR HM90 E90A-D1.00-4-M12 Milling Cutter 90.0° 1.000 Diameter Screw On M12 2.240 OAL 4 Flute

ISCAR HM90 E90A-D1.00-4-M12 Milling Cutter 90.0° 1.000 Diameter Screw On M12 2.240 OAL 4 Flute

ANSI: HM90 E90A-D1.00-4-M12

ISO: HM90 E90A-D1.00-4-M12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110732
Delivery date: 3-5 days
$402.24

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Overall Len 2.2400 56.90MM
Depth Of Cut Max 0.3940
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 4
Insert Size Ic 10
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Max Ramp Angle 2.50°
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
