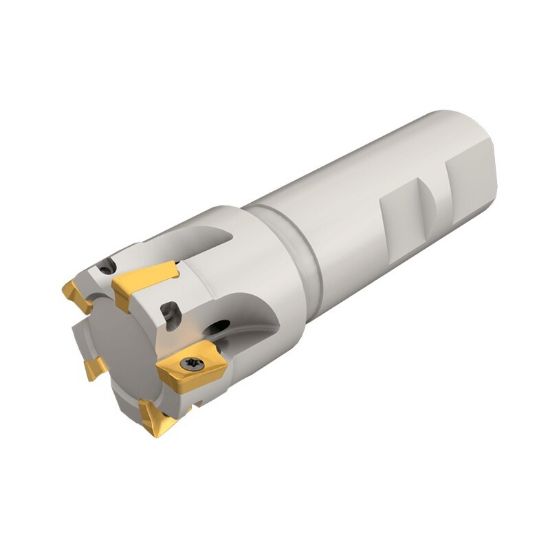

Picture of ISCAR HM90 E90A-D1.00-3-W1.00XL Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 5.510 OAL 3 Flute

ISCAR HM90 E90A-D1.00-3-W1.00XL Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 5.510 OAL 3 Flute

ANSI: HM90 E90A-D1.00-3-W1.00XL

ISO: HM90 E90A-D1.00-3-W1.00XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102144
Delivery date: 3-5 days
$367.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 10
Flutes/Inserts 3
Depth Of Cut Max 0.3940
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Weldon
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Overall Len 5.5100 139.95MM
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Max Ramp Angle 2.50°
Fasteners & Connectors
Insert Screw 7002441
