  • ISCAR HM390 FTP D2.50-6-1.0-10 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 6 Flute

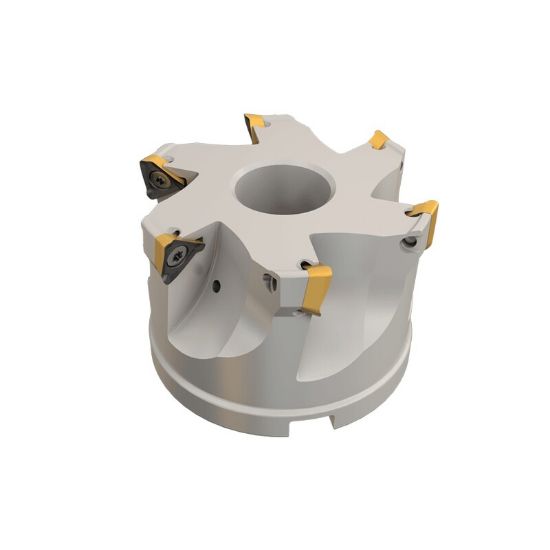

Picture of ISCAR HM390 FTP D2.50-6-1.0-10 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 6 Flute

ISCAR HM390 FTP D2.50-6-1.0-10 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.770 OAL 6 Flute

ANSI: HM390 FTP D2.50-6-1.0-10

ISO: HM390 FTP D2.50-6-1.0-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106638
Delivery date: 3-5 days
$696.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Made In USA No
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Overall Len 1.7700 44.96MM
Insert Size Ic 10
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.3150
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TP
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7002353
