  • ISCAR HM390 FTP D2.00-4-.75-10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

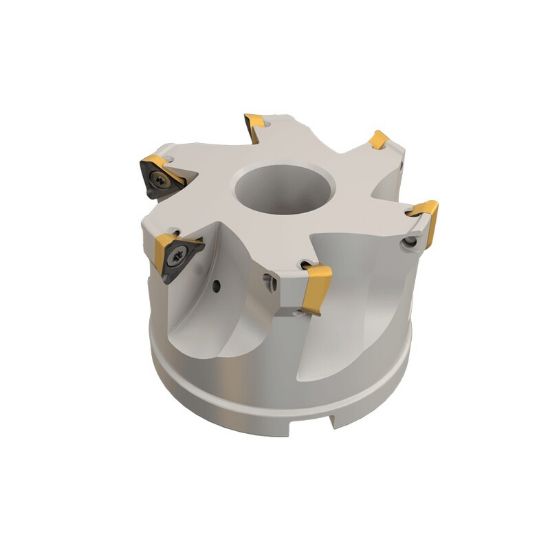

Picture of ISCAR HM390 FTP D2.00-4-.75-10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ISCAR HM390 FTP D2.00-4-.75-10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ANSI: HM390 FTP D2.00-4-.75-10

ISO: HM390 FTP D2.00-4-.75-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106636
Delivery date: 3-5 days
$592.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Slot Milling, Ramp Milling, Side Milling, Face Milling, Pocket Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.3150
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Overall Len 1.5700 39.88MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002353
