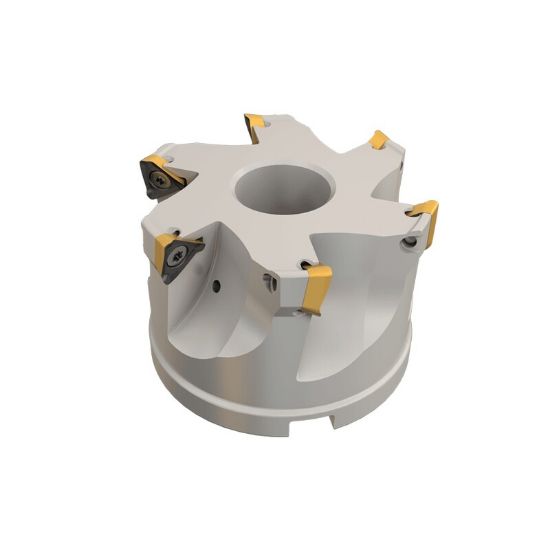

ISCAR HM390 FTP D1.50-5-.50-10 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.370 OAL 5 Flute

ANSI: HM390 FTP D1.50-5-.50-10

ISO: HM390 FTP D1.50-5-.50-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3355008
Delivery date: 3-5 days
$514.56

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Insert Size Ic 10
Flutes/Inserts 5
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Overall Len 1.3700 34.80MM
Depth Of Cut Max 0.0510
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Insert Style TP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7003185
