  • ISCAR HM390 FTP D1.50-3-.50-10 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.370 OAL 3 Flute

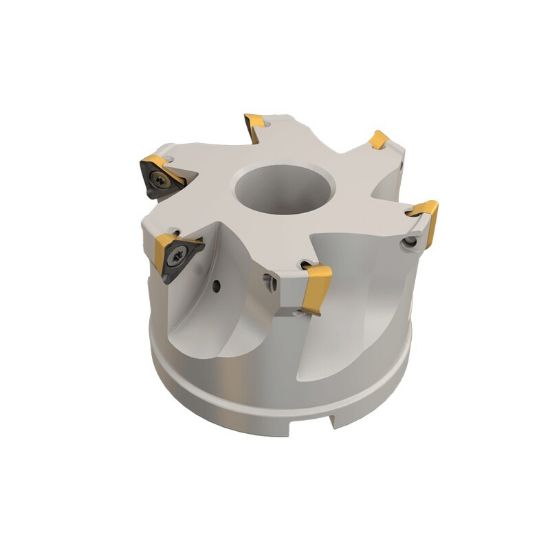

Picture of ISCAR HM390 FTP D1.50-3-.50-10 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.370 OAL 3 Flute

ISCAR HM390 FTP D1.50-3-.50-10 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.370 OAL 3 Flute

ANSI: HM390 FTP D1.50-3-.50-10

ISO: HM390 FTP D1.50-3-.50-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106634
Delivery date: 3-5 days
$463.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 10
Flutes/Inserts 3
Depth Of Cut Max 0.3150
Overall Len 1.3700 34.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
Fasteners & Connectors
Insert Screw 7002353
