  • ISCAR HM390 FTD D6.00-8-2.0-15 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

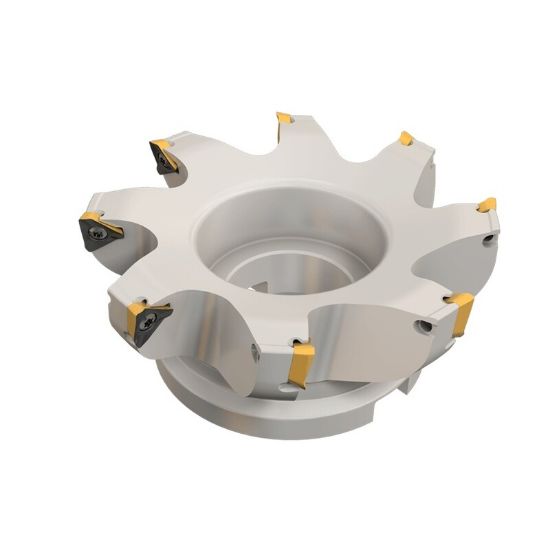

Picture of ISCAR HM390 FTD D6.00-8-2.0-15 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

ISCAR HM390 FTD D6.00-8-2.0-15 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

ANSI: HM390 FTD D6.00-8-2.0-15

ISO: HM390 FTD D6.00-8-2.0-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106569
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 6.0000 152.40MM
Overall Len 2.5000 63.50MM
Cutter Dia 6.0000 152.40MM
Flutes/Inserts 8
Insert Size Ic 15
Depth Of Cut Max 0.5120
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 6.0000 152.40MM
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Insert Style TD
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7005206
