  • ISCAR HM390 FTD D3.00-6-1.00-19 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

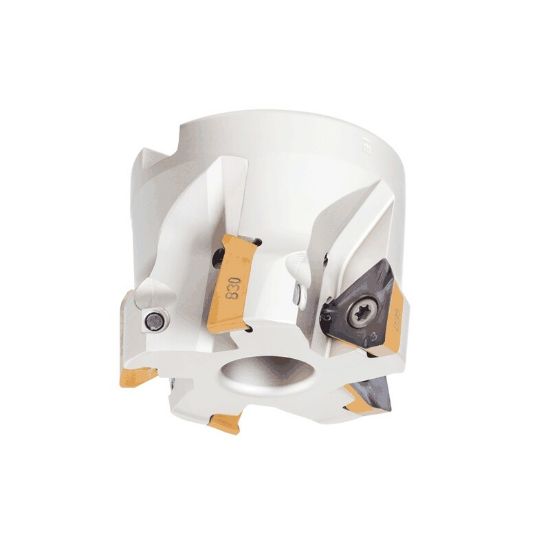

Picture of ISCAR HM390 FTD D3.00-6-1.00-19 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR HM390 FTD D3.00-6-1.00-19 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: HM390 FTD D3.00-6-1.00-19

ISO: HM390 FTD D3.00-6-1.00-19

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107070
Delivery date: 3-5 days
$870.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Depth Of Cut Max 0.0590
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Insert Size Ic 19
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style TD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7000229
