  • ISCAR HM390 FTC D1.50-06-.50-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.400 OAL 6 Flute

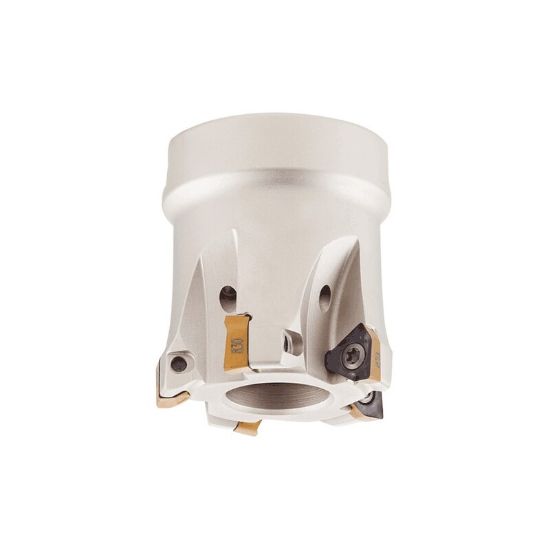

Picture of ISCAR HM390 FTC D1.50-06-.50-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.400 OAL 6 Flute

ISCAR HM390 FTC D1.50-06-.50-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.400 OAL 6 Flute

ANSI: HM390 FTC D1.50-06-.50-07

ISO: HM390 FTC D1.50-06-.50-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106943
Delivery date: 3-5 days
$550.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2000
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Tool Material Steel
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.4000 35.56MM
Insert Size Ic 7
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4398576
