  • ISCAR HM390 FTC D1.50-05-.50-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.400 OAL 5 Flute

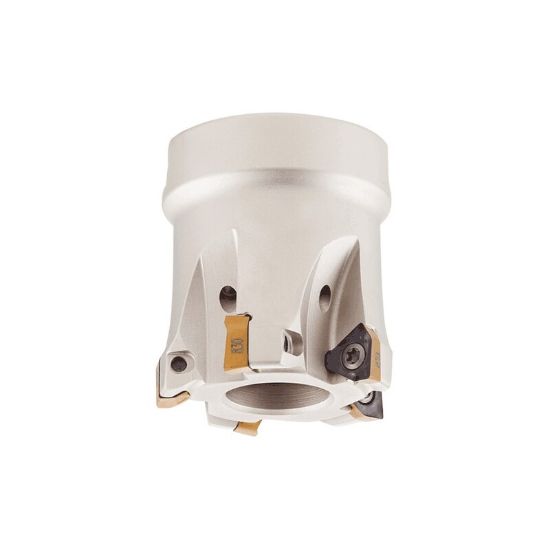

Picture of ISCAR HM390 FTC D1.50-05-.50-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.400 OAL 5 Flute

ISCAR HM390 FTC D1.50-05-.50-07 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.500 1.400 OAL 5 Flute

ANSI: HM390 FTC D1.50-05-.50-07

ISO: HM390 FTC D1.50-05-.50-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106942
Delivery date: 3-5 days
$514.56

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.4000 35.56MM
Depth Of Cut Max 0.2000
Cutter Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 7
Cut Dia Max 1.5000 38.10MM - 1-1/2
Tool Material Steel
Flutes/Inserts 5
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006639
