  • ISCAR HM390 FTC D1.25-04-.50-07 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.400 OAL 4 Flute

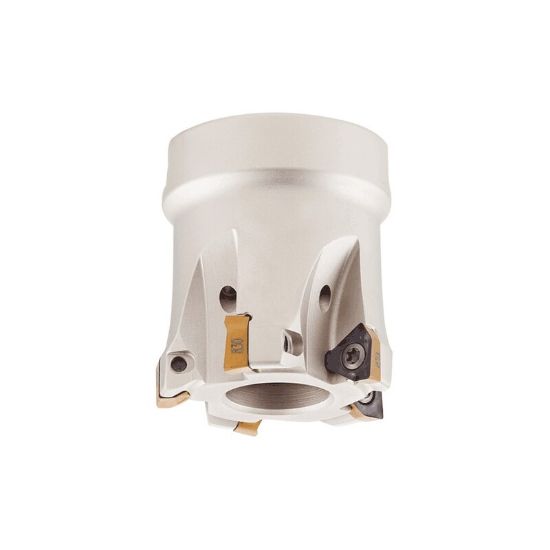

Picture of ISCAR HM390 FTC D1.25-04-.50-07 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.400 OAL 4 Flute

ISCAR HM390 FTC D1.25-04-.50-07 Milling Cutter 90.0° 1.250 Diameter Face Mill 0.500 1.400 OAL 4 Flute

ANSI: HM390 FTC D1.25-04-.50-07

ISO: HM390 FTC D1.25-04-.50-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106940
Delivery date: 3-5 days
$447.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.4000 35.56MM
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Insert Size Ic 7
Cutter Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2000
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style TC
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006639
