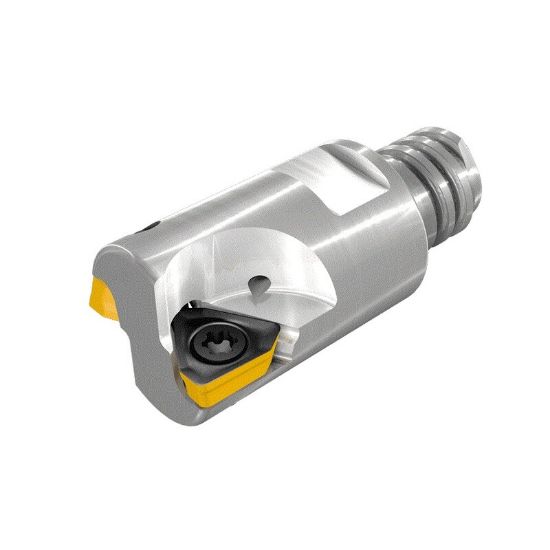

Picture of ISCAR HM390 ETPD.62-04-MMT10-05 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.200 OAL 4 Flute

ISCAR HM390 ETPD.62-04-MMT10-05 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.200 OAL 4 Flute

ANSI: HM390 ETPD.62-04-MMT10-05

ISO: HM390 ETPD.62-04-MMT10-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350634
Delivery date: 3-5 days
$360.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size T10
Flutes/Inserts 4
Machine Side Connection Type Screw On
Cut Dia Min 0.6250 15.88MM - 5/8
Insert Size Ic 5
Depth Of Cut Max 0.1380
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Overall Len 1.2000 30.48MM
Cutting & Machining Properties
Max Ramp Angle 1.50°
Coolant Thru No
Cool Sply Type External
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7006178
