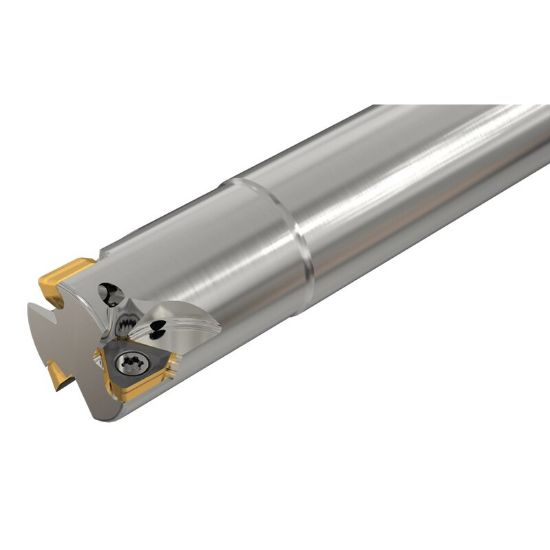

Picture of ISCAR HM390 ETPD.62-04-C.62-05C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 4 Flute

ISCAR HM390 ETPD.62-04-C.62-05C Milling Cutter 90.0° 0.625 Diameter Round 0.625 3.500 OAL 4 Flute

ANSI: HM390 ETPD.62-04-C.62-05C

ISO: HM390 ETPD.62-04-C.62-05C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3346004
Delivery date: 3-5 days
$343.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.1380
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 5
Flutes/Inserts 4
Cut Dia Min 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Cool Sply Type External
Insert Style TP
Max Ramp Angle 1.50°
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Fasteners & Connectors
Insert Screw 3348063
