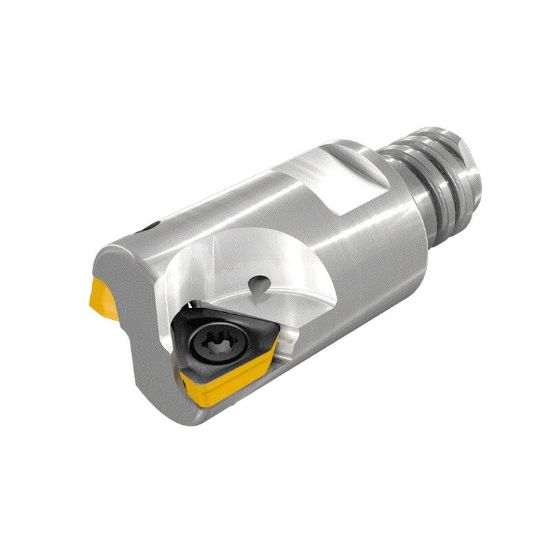

Picture of ISCAR HM390 ETPD.50-03-MMT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.950 OAL 3 Flute

ISCAR HM390 ETPD.50-03-MMT08-05 Milling Cutter 90.0° 0.500 Diameter Screw On T08 0.950 OAL 3 Flute

ANSI: HM390 ETPD.50-03-MMT08-05

ISO: HM390 ETPD.50-03-MMT08-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350633
Delivery date: 3-5 days
$325.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 5
Cutter Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1380
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Flutes/Inserts 3
Cut Dia Max 0.5000 12.70MM - 1/2
Overall Len 0.9500 24.13MM
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 1.50°
Insert Style TP
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 3323647
