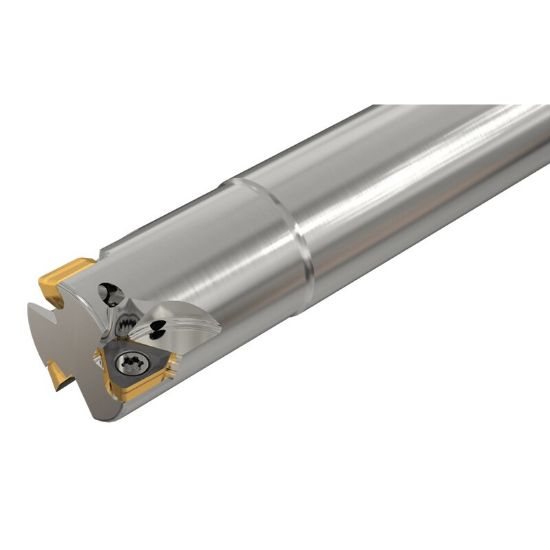

Picture of ISCAR HM390 ETPD.50-03-C.50-05C Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

ISCAR HM390 ETPD.50-03-C.50-05C Milling Cutter 90.0° 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

ANSI: HM390 ETPD.50-03-C.50-05C

ISO: HM390 ETPD.50-03-C.50-05C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3346003
Delivery date: 3-5 days
$311.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 5
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Cylindrical
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cut Dia Max 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1380
Cut Dia Min 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Max Ramp Angle 1.50°
Cool Sply Type External
Coolant Thru No
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7006178
