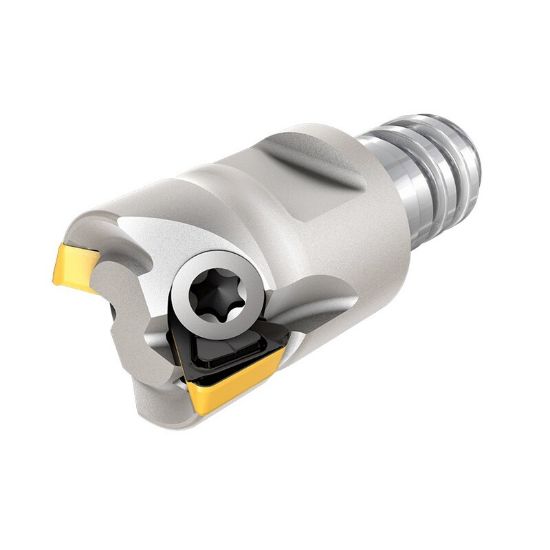

Picture of ISCAR HM390 ETP D.38-3-MMT06-04 Milling Cutter 90.0° 0.375 Diameter Screw On T06 0.740 OAL 3 Flute

ISCAR HM390 ETP D.38-3-MMT06-04 Milling Cutter 90.0° 0.375 Diameter Screw On T06 0.740 OAL 3 Flute

ANSI: HM390 ETP D.38-3-MMT06-04

ISO: HM390 ETP D.38-3-MMT06-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350631
Delivery date: 3-5 days
$320.64

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Package Size 1
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size T06
Flutes/Inserts 3
Cut Dia Max 0.3750 9.53MM - 3/8
Insert Size Ic 4
Tool Material Steel
Depth Of Cut Max 0.1200
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Screw On
Overall Len 0.7400 18.80MM
Cutting & Machining Properties
Insert Style TP
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.50°
Fasteners & Connectors
Insert Screw 3323647
