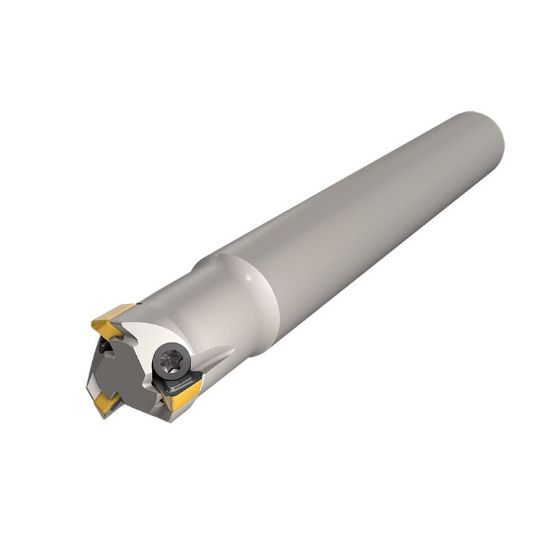

Picture of ISCAR HM390 ETP D.38-3-C.38-04 Milling Cutter 90.0° 0.375 Diameter Round 0.375 3.000 OAL 3 Flute

ISCAR HM390 ETP D.38-3-C.38-04 Milling Cutter 90.0° 0.375 Diameter Round 0.375 3.000 OAL 3 Flute

ANSI: HM390 ETP D.38-3-C.38-04

ISO: HM390 ETP D.38-3-C.38-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3343208
Delivery date: 3-5 days
$305.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.3750 9.53MM
Cut Dia Max 0.3750 9.53MM - 3/8
Insert Size Ic 4
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Steel
Depth Of Cut Max 0.1200
Flutes/Inserts 3
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.60°
Cool Sply Type External
Insert Style TP
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006178
