  • ISCAR HM390 ETP D36-4-L39-C3 10 Milling Cutter 90.0° 1.417 Diameter PSC "Capto Type" 1.181 2.913 OAL 4 Flute

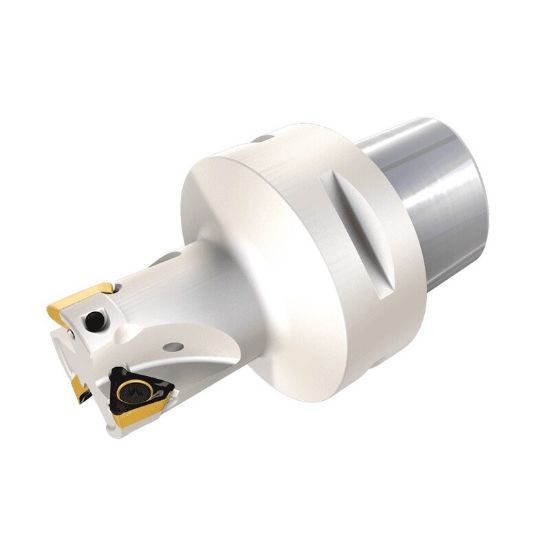

Picture of ISCAR HM390 ETP D36-4-L39-C3 10 Milling Cutter 90.0° 1.417 Diameter PSC "Capto Type" 1.181 2.913 OAL 4 Flute

ISCAR HM390 ETP D36-4-L39-C3 10 Milling Cutter 90.0° 1.417 Diameter PSC "Capto Type" 1.181 2.913 OAL 4 Flute

ANSI: HM390 ETP D36-4-L39-C3 10

ISO: HM390 ETP D36-4-L39-C3 10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3139869
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.9450
Cut Dia Max 1.4170 35.99MM
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 1.1810 30.00MM
Insert Size Ic 10
Overall Len 2.9130 73.99MM
Cut Dia Min 1.4170 35.99MM
Shank/Pilot Dia 1.1811 30.00MM
Flutes/Inserts 4
Cutter Dia 1.4170 35.99MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
Coolant Thru Yes
Max Ramp Angle 1.70°
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002353
