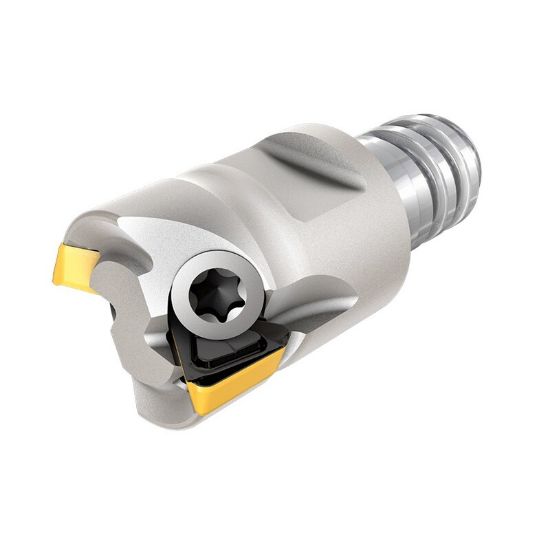

Picture of ISCAR HM390 ETP D.31-2-MMT05-04 Milling Cutter 90.0° 0.313 Diameter Screw On T05 0.850 OAL 2 Flute

ISCAR HM390 ETP D.31-2-MMT05-04 Milling Cutter 90.0° 0.313 Diameter Screw On T05 0.850 OAL 2 Flute

ANSI: HM390 ETP D.31-2-MMT05-04

ISO: HM390 ETP D.31-2-MMT05-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350630
Delivery date: 3-5 days
$292.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Depth Of Cut Max 0.1200
Overall Len 0.8500 21.59MM
Flutes/Inserts 2
Cutter Dia 0.3130 7.95MM
Cut Dia Min 0.3130 7.95MM
Cut Dia Max 0.3130 7.95MM
Machine Side Connection Size T05
Machine Side Connection Type Screw On
Cutting & Machining Properties
Cool Sply Type External
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 3.00°
Coolant Thru No
Fasteners & Connectors
Insert Screw 3323647
