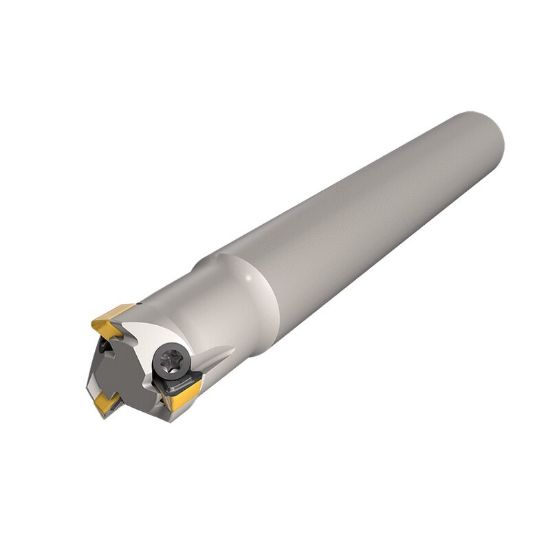

Picture of ISCAR HM390 ETP D.31-2-C.31-04 Milling Cutter 90.0° 0.313 Diameter Round 0.312 2.500 OAL 2 Flute

ISCAR HM390 ETP D.31-2-C.31-04 Milling Cutter 90.0° 0.313 Diameter Round 0.312 2.500 OAL 2 Flute

ANSI: HM390 ETP D.31-2-C.31-04

ISO: HM390 ETP D.31-2-C.31-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3343207
Delivery date: 3-5 days
$280.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Roughing, Semi Finishing
Insert Type Positive
Application Face Milling, Side Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 4
Machine Side Connection Size 0.3125 7.94MM
Cut Dia Max 0.3130 7.95MM
Flutes/Inserts 2
Depth Of Cut Max 0.1200
Overall Len 2.5000 63.50MM
Length Of Cut 0.1200 3.05MM
Cut Dia Min 0.3130 7.95MM
Dimension Description 0.313 x 0.313 x 0.120 x 2.500
Machine Side Connection Type Cylindrical
Cutter Dia 0.3130 7.95MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 3.00°
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Cool Sply Type External
Insert Style TP
Fasteners & Connectors
Insert Screw 3323647
