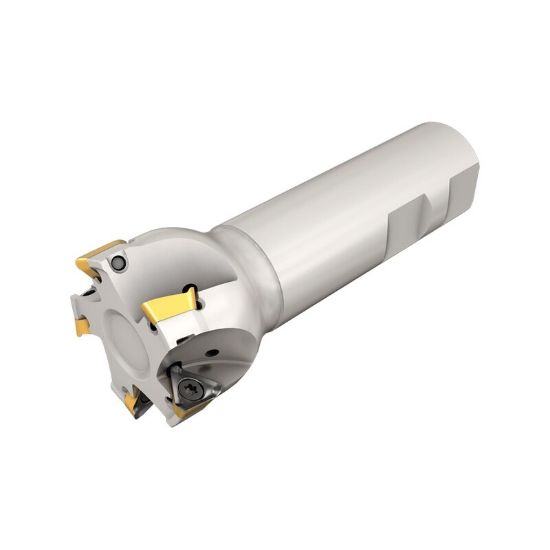

Picture of ISCAR HM390 ETP D1.00-3-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

ISCAR HM390 ETP D1.00-3-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 3 Flute

ANSI: HM390 ETP D1.00-3-W.75-10

ISO: HM390 ETP D1.00-3-W.75-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106999
Delivery date: 3-5 days
$392.64

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cut Dia Max 1.0000 25.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Depth Of Cut Max 0.6370
Machine Side Connection Type Weldon
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through Hole
Max Ramp Angle 2.90°
Insert Style TP
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006097
