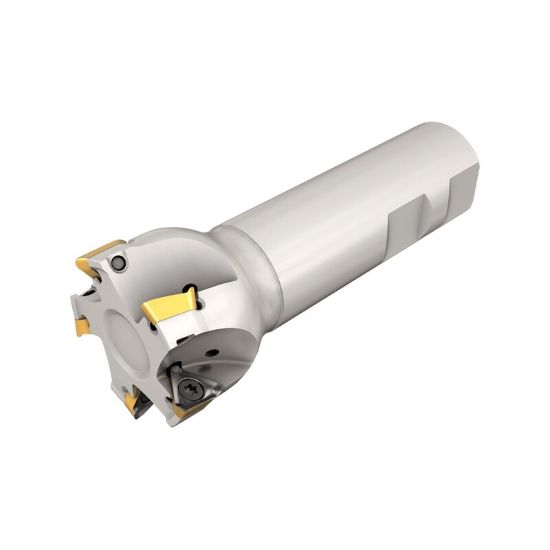

Picture of ISCAR HM390 ETP D1.00-3-W1.0-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 3 Flute

ISCAR HM390 ETP D1.00-3-W1.0-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 3 Flute

ANSI: HM390 ETP D1.00-3-W1.0-10

ISO: HM390 ETP D1.00-3-W1.0-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106627
Delivery date: 3-5 days
$392.64

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 10
Flutes/Inserts 3
Depth Of Cut Max 0.3150
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style TP
Coolant Thru Yes
Max Ramp Angle 2.90°
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7002353
