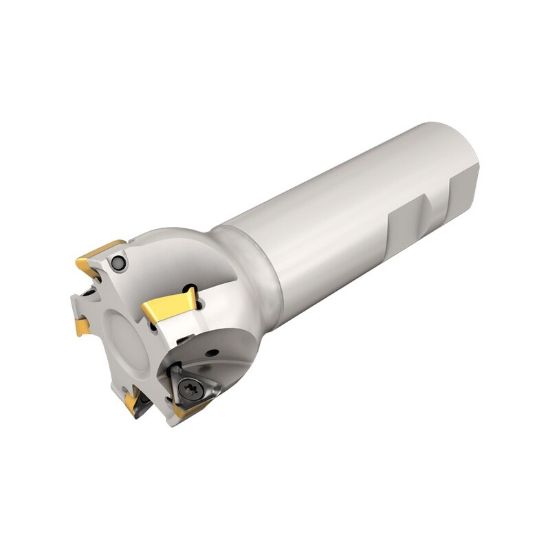

Picture of ISCAR HM390 ETP D1.00-2-W1.0-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 2 Flute

ISCAR HM390 ETP D1.00-2-W1.0-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 2 Flute

ANSI: HM390 ETP D1.00-2-W1.0-10

ISO: HM390 ETP D1.00-2-W1.0-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106625
Delivery date: 3-5 days
$364.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Side Milling, Slot Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 10
Depth Of Cut Max 0.3150
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through Hole
Max Ramp Angle 2.90°
Insert Style TP
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002353
