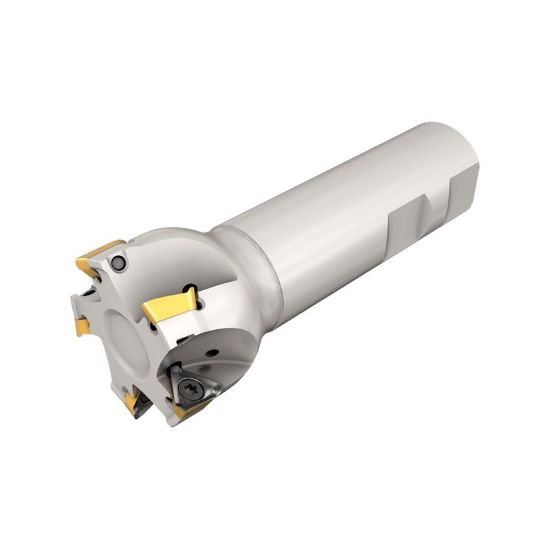

Picture of ISCAR HM390 ETP D1.00-2-C1.0-B Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.870 OAL 2 Flute

ISCAR HM390 ETP D1.00-2-C1.0-B Milling Cutter 90.0° 1.000 Diameter Round 1.000 7.870 OAL 2 Flute

ANSI: HM390 ETP D1.00-2-C1.0-B

ISO: HM390 ETP D1.00-2-C1.0-B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106624
Delivery date: 3-5 days
$395.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State Texas
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Overall Len 7.8700 199.90MM
Insert Size Ic 10
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.2160
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style TP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.90°
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002353
