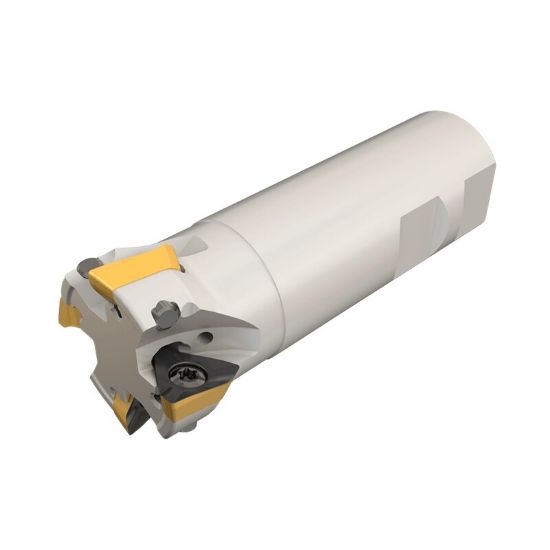

Picture of ISCAR HM390 ETD D1.5-3-W1.25-15 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 3 Flute

ISCAR HM390 ETD D1.5-3-W1.25-15 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 4.000 OAL 3 Flute

ANSI: HM390 ETD D1.5-3-W1.25-15

ISO: HM390 ETD D1.5-3-W1.25-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106573
Delivery date: 3-5 days
$433.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Size Ic 15
Depth Of Cut Max 0.5120
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style TD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.10°
Fasteners & Connectors
Insert Screw 7000000
